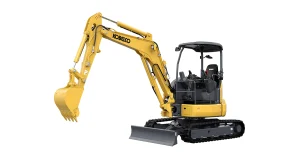

Compact Powerhouse Mini Excavator
The Kobelco SK35 series delivers big‑machine performance in a compact, short‑radius format — perfect for jobsites with limited space, utility work, landscaping, or rental fleet deployment. With an engine output of approximately 23 hp (17.2 kW) and an operating weight around 9,000 lb (4,080 kg), the SK35SR‑7 offers strong capability in a transport‑friendly size.Smart Efficiency & Tight‑Space Design
Built with a short‑tail swing chassis, the machine’s overhang is minimal—ideal for tight access and urban‑site operation. The proprietary iNDr (Integrated Noise & Dust Reduction) cooling system reduces downtime, cleaner air intake, and quieter operation — boosting productivity and operator comfort. The SK35 also offers an energy‑conservation mode to cut fuel use by up to ~25%.Operator Comfort & Fleet‑Ready Features
From its roomy rectangular‑cab design (or optional canopy) to improved visibility, ergonomic controls and ground‑level maintenance access, the SK35 series is built for high‑utilization fleets. The standard boom‑and‑arm configuration offers a solid working range (e.g., digging depth ~10 ft / 3.05 m, reach ~18 ft 6″ / 5.64 m) in many variants.TECHNICAL SPECIFICATIONS
| Specification | Value |
|---|---|
| Engine Power (Gross) | 23.1 hp (17.2 kW) |
| Operating Weight (Cab version) | 8,555 lb (3,880 kg) |
| Operating Weight (Canopy) | 8,214 lb (3,725 kg) |
| Max Digging Depth | 10 ft 9″ (3,270 mm) |
| Max Reach | 18 ft 6″ (5,640 mm) |
| Bucket Digging Force | 7,240 lbf (32.2 kN) |
| Travel Speed (High / Low) | 2.7 mph (4.4 km/h) / 1.6 mph (2.5 km/h) |
| Transport Height | 8′ 3″ (2,510 mm) |
